Title: F4-201 (with 2 Battery)
Title: F4-201 (with 2 Battery)
Available by Quote
Delivery is available across the contiguous United States. Shipping cost and available service are calculated based on the order and destination.
Shipping availability, methods and costs are confirmed by destination and shown at checkout when available. Contact Raelon for assistance.

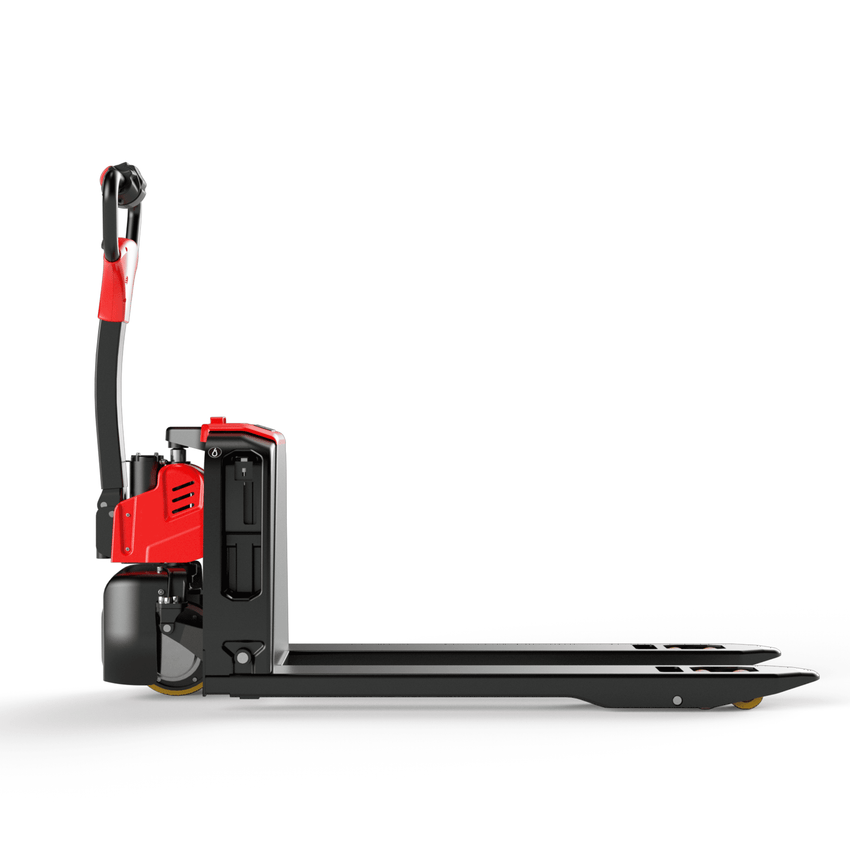

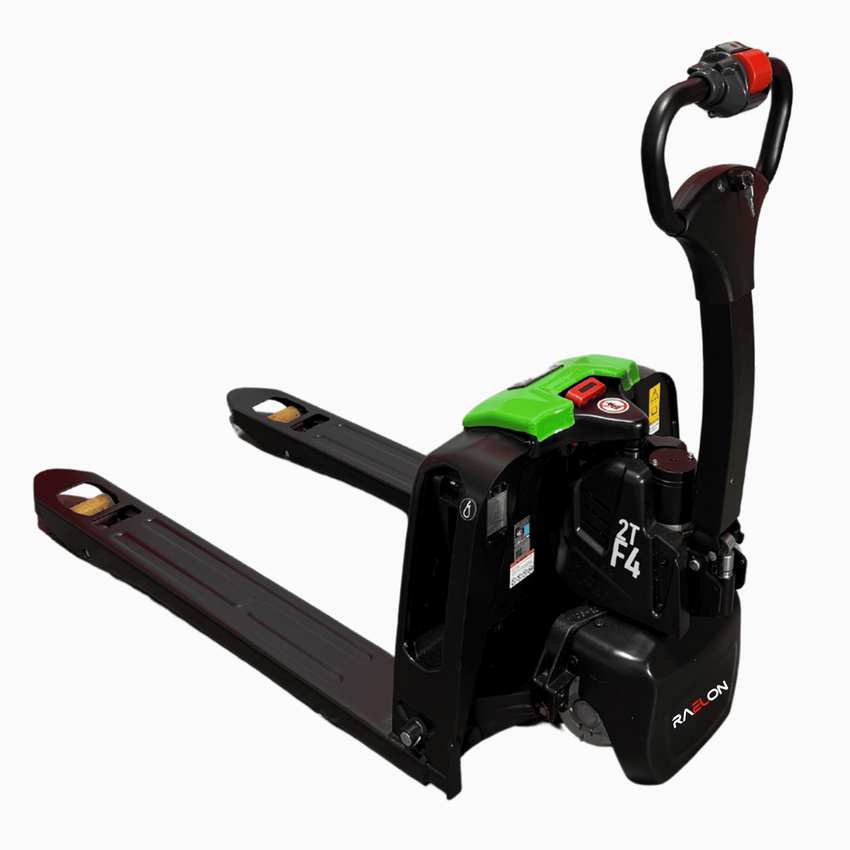

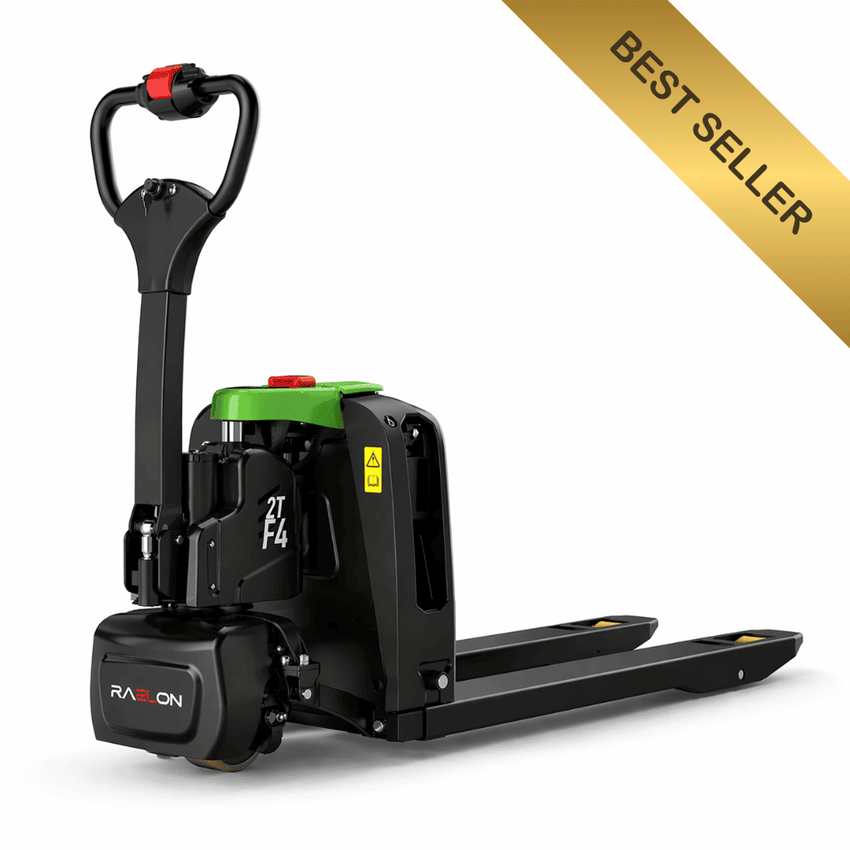

The Raelon F4-201 is a 4,400 lb lithium electric pallet jack for heavier daily pallet movement in U.S. warehouses, receiving areas, and distribution environments.
The F4-201 is not necessary for every operation. Businesses moving lighter loads less frequently may prefer the lower-cost F4, while long-distance or ride-on workflows may require a different truck configuration.

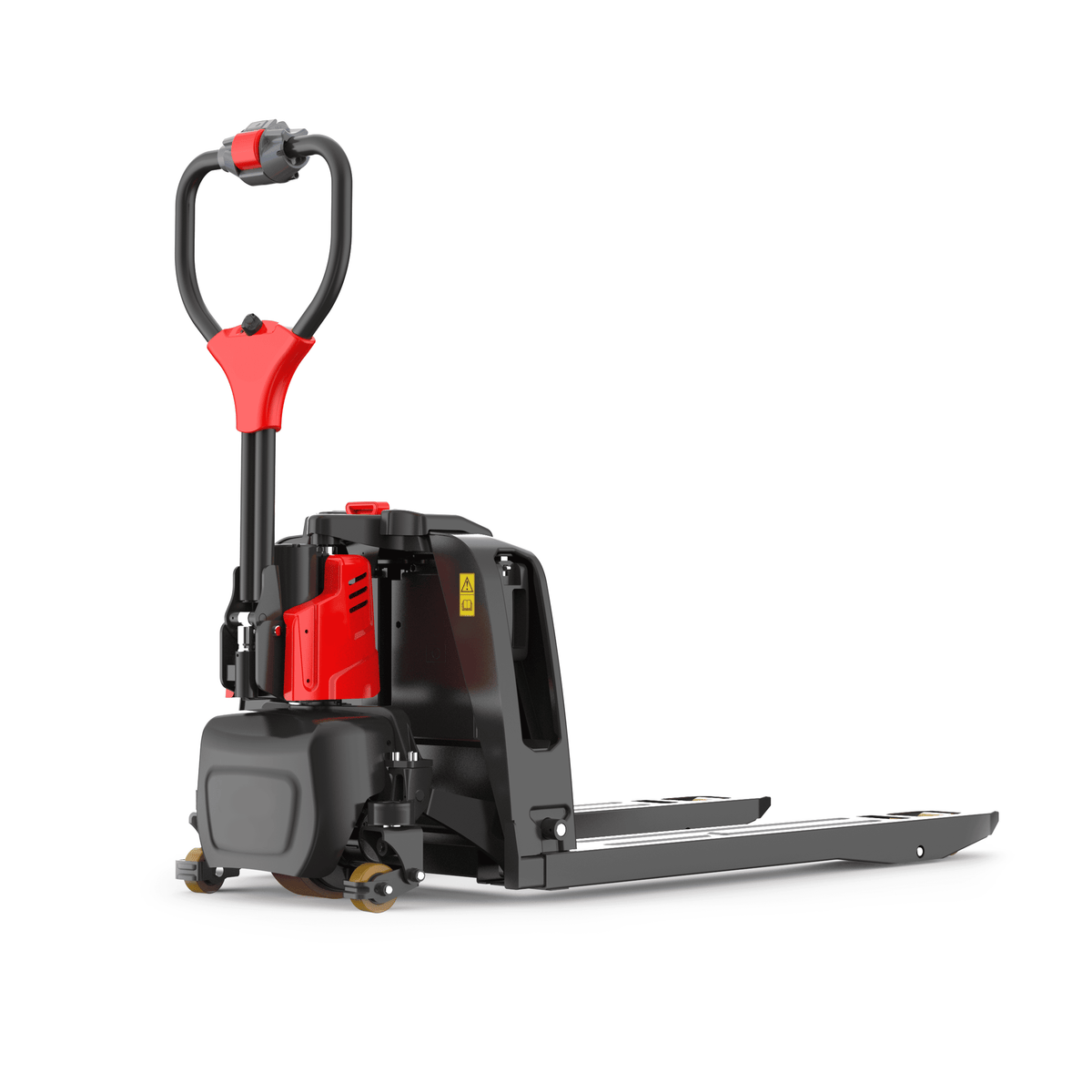

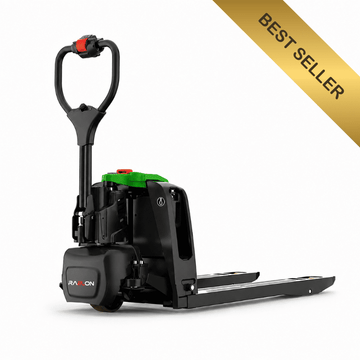

Raelon F4 3300lbs Lithium-Ion Electric Pallet Jack
$1,699.00
In Stock
A higher-capacity battery-powered pallet jack for frequent indoor pallet movement and heavier warehouse loads.
Built for heavier pallet loads and warehouse work that exceeds the capacity of lighter-duty electric pallet jacks.
Two removable 24V / 20Ah lithium-ion batteries work together to form the truck’s 48V power system.
Charge both standard batteries at the same time with the two included chargers. Simultaneous charging takes approximately two hours.
The standard two-battery configuration supports up to approximately four hours of operation, depending on load and working conditions.
A 54 in turning radius supports manoeuvring in warehouse aisles, staging areas, receiving spaces, and stockrooms.
Choose the stabilizing-wheel variant when additional lateral support is appropriate for the intended workflow.
Powered travel and lift functions reduce the physical effort required compared with moving heavy pallets using a manual pallet truck.
The batteries can be removed for charging and use standard 110V–120V electrical outlets with the included chargers.

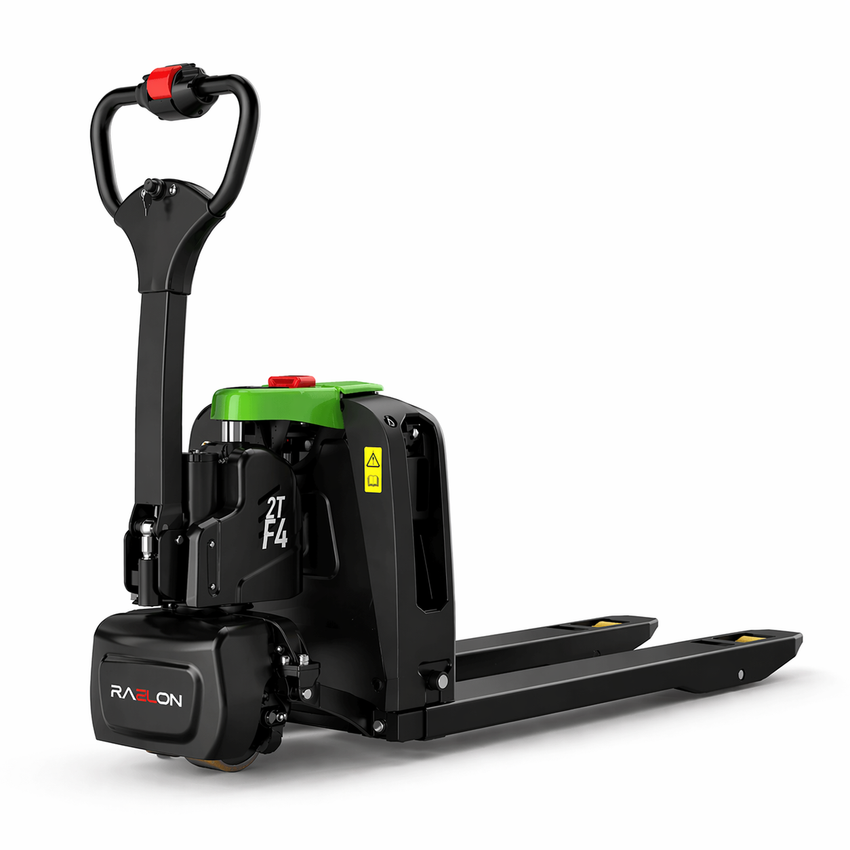

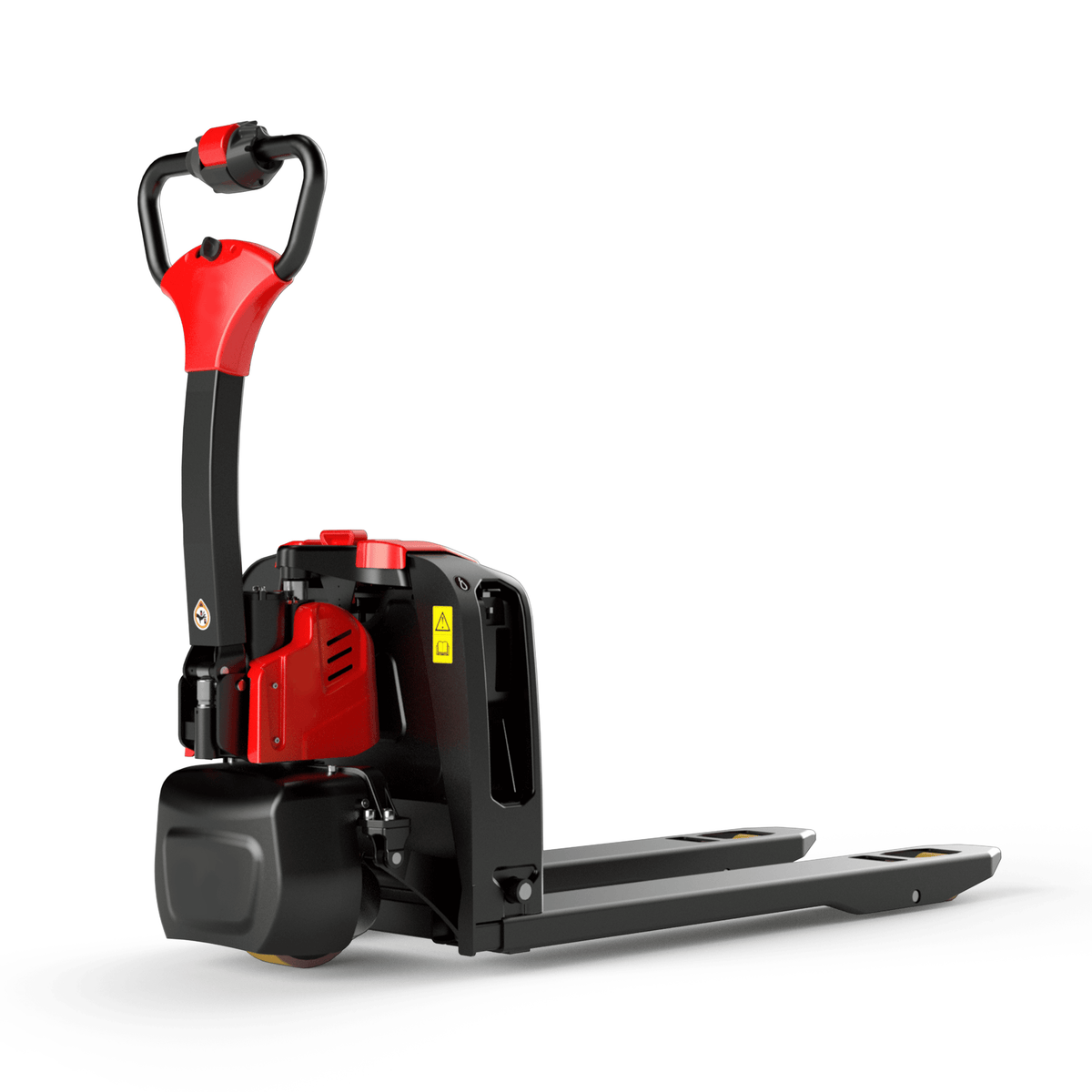

The Raelon F4-201 is a compact 4,400 lb lithium electric pallet jack designed for heavier daily pallet movement. Its 48V dual-battery system, powered travel controls, and higher rated capacity make it a practical option for warehouses, receiving areas, and businesses that regularly handle heavier pallet loads.

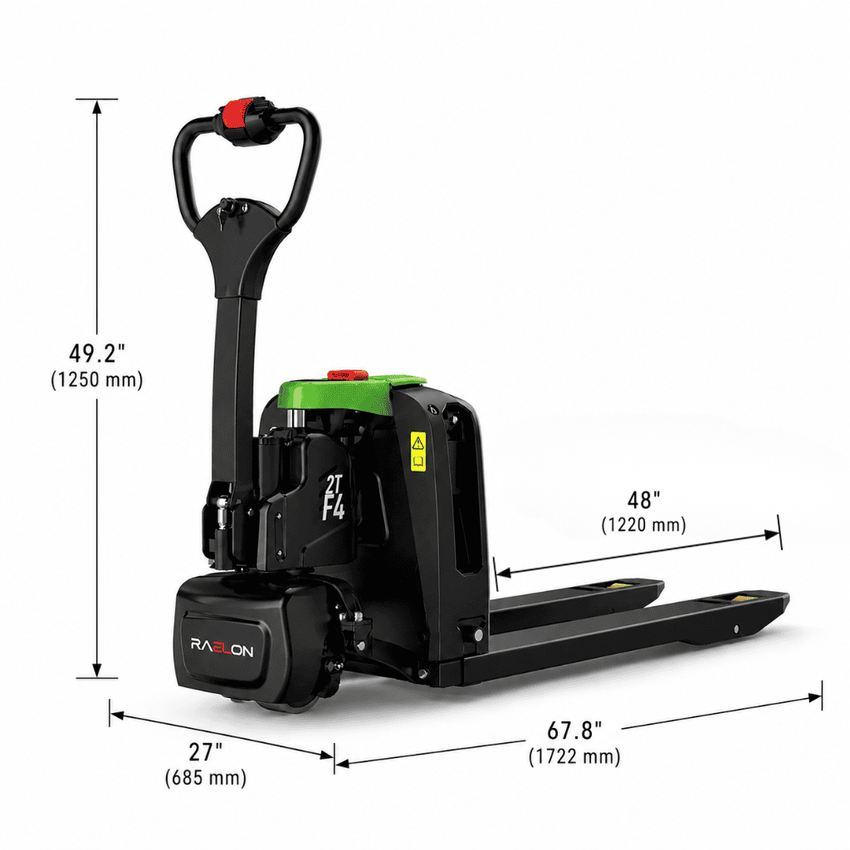

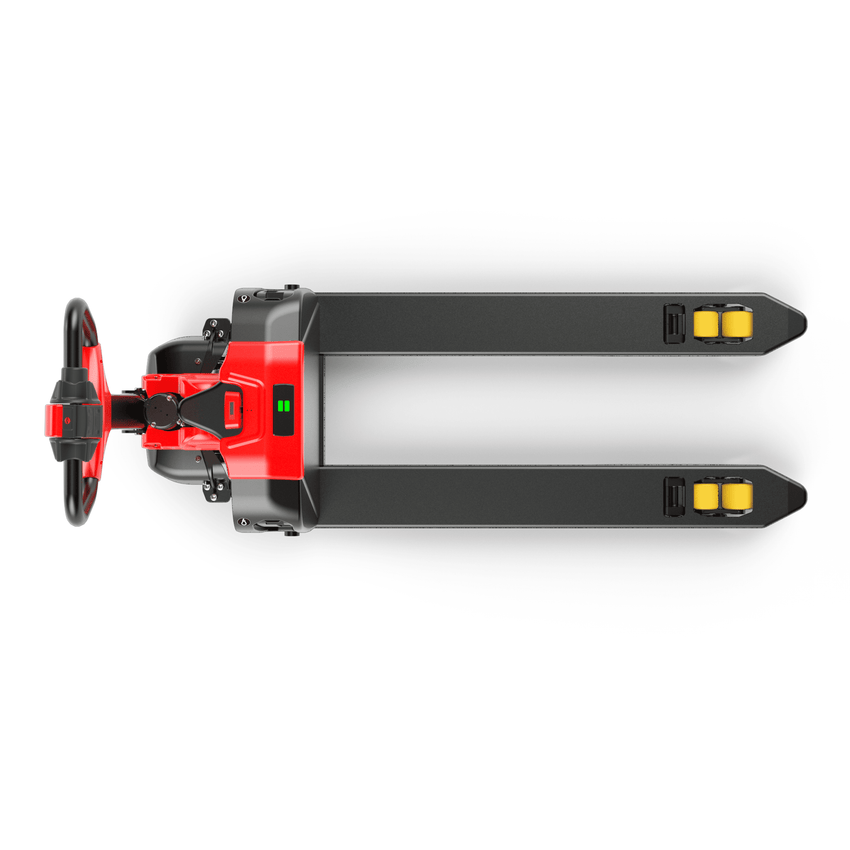

With a 4,400 lb rated capacity and 48 in × 27 in forks, the F4-201 supports heavier warehouse, receiving, and pallet-transfer applications while retaining a compact walkie-pallet-jack format.

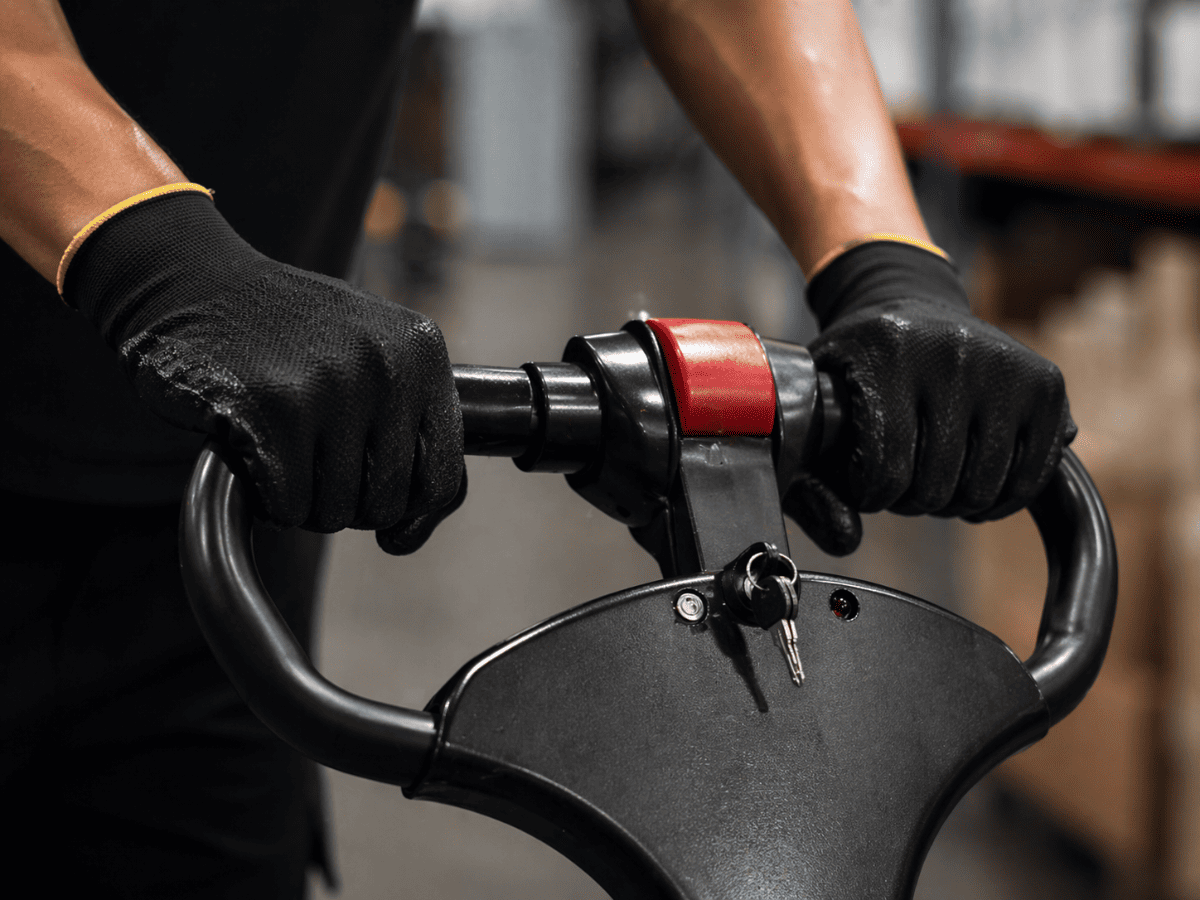

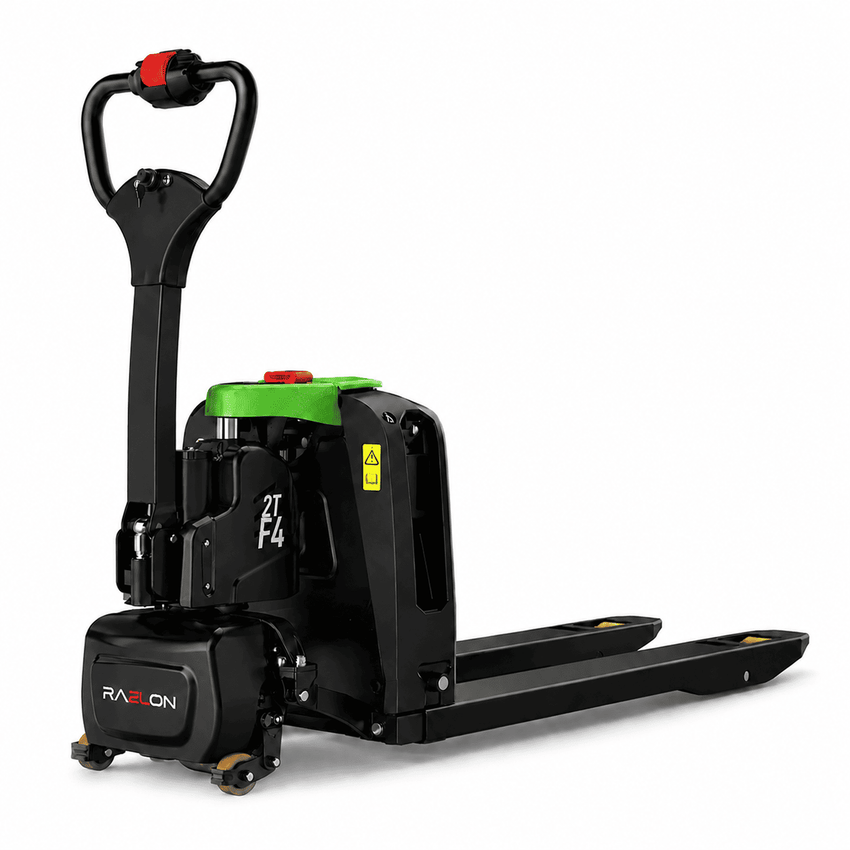

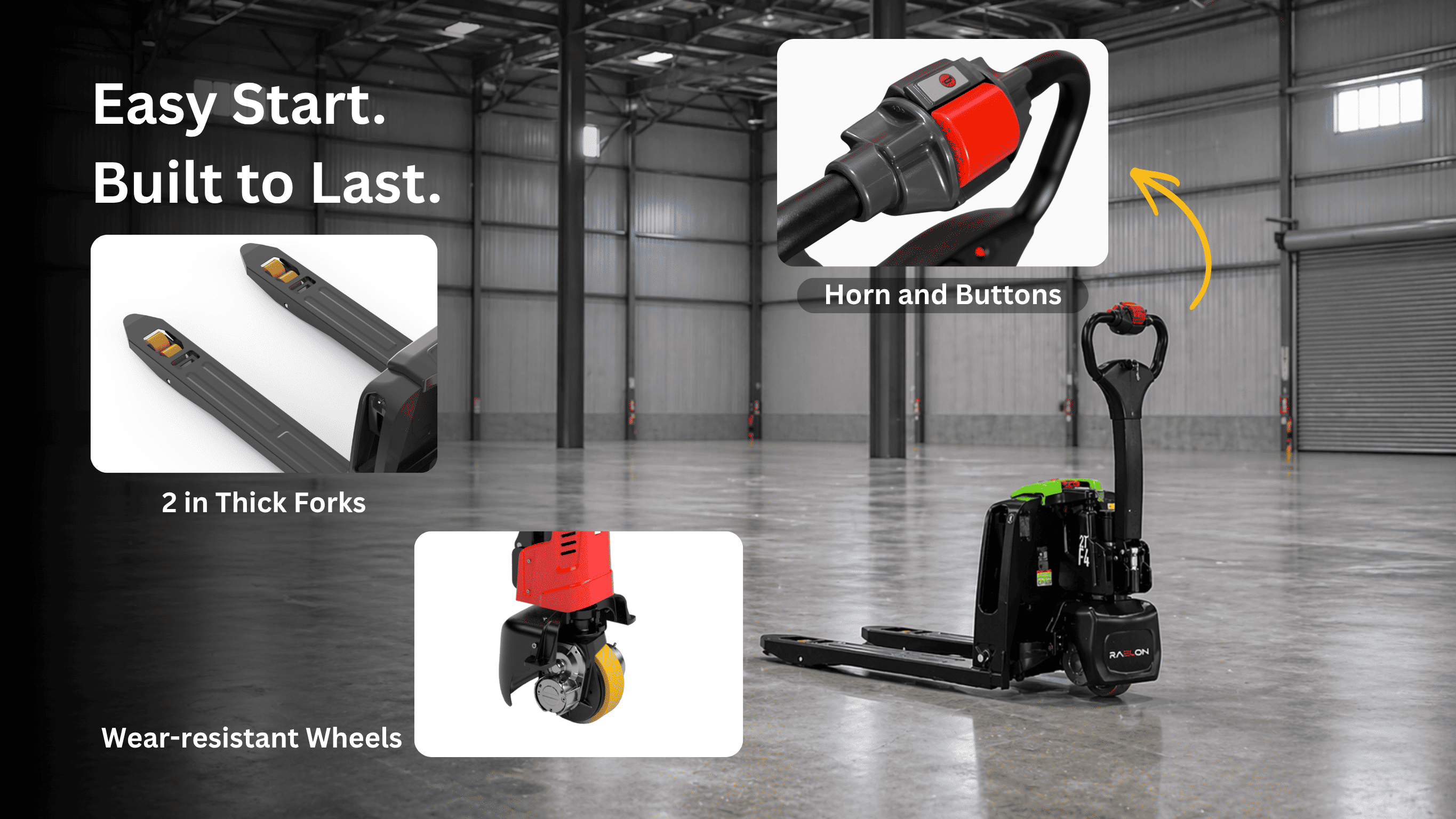

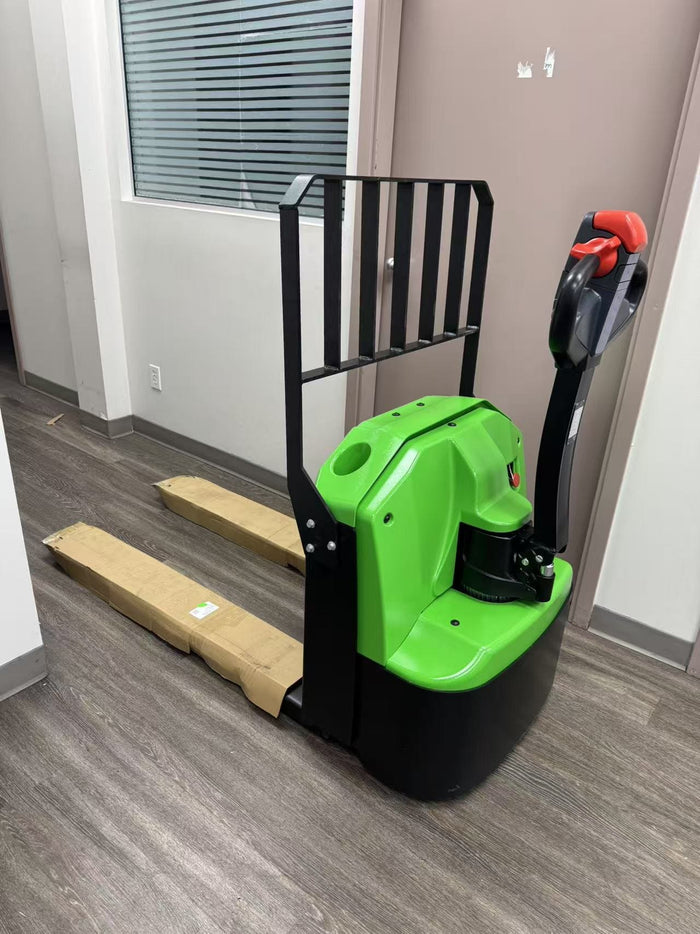

Selected F4-201 configurations include two stabilizing wheels for additional support during suitable handling applications. The machine also includes powered controls, an ergonomic tiller, reverse safety switch, horn, and non-marking polyurethane wheels.
The standard F4-201 configuration includes two removable 24V / 20Ah lithium-ion batteries and two chargers. Charging both batteries simultaneously is recommended, with a typical full charging time of about two hours under normal conditions.

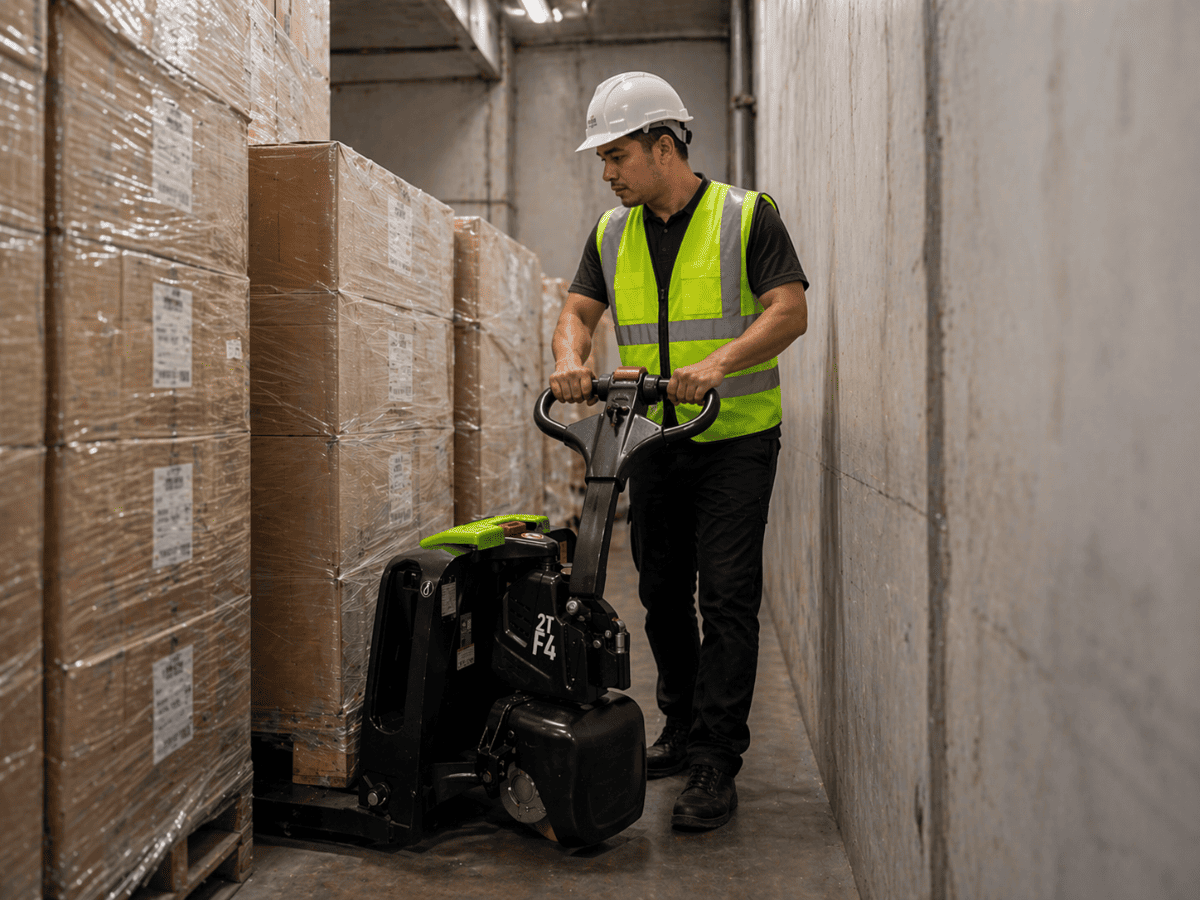

A compact 54 in turning radius helps the F4-201 manoeuvre through warehouse aisles, receiving areas, storage rooms, and pallet-staging spaces despite its higher load capacity.
Compare capacity, battery configuration, and daily warehouse fit before ordering.
Swipe to compare models
In Stock
Currently Unavailable
Review the F4-201 capacity, dual-battery system, dimensions, and performance specifications before ordering.
Coming Soon — Not currently available in the U.S. This page provides product specifications and future-availability information. It is not currently purchasable by U.S. customers.

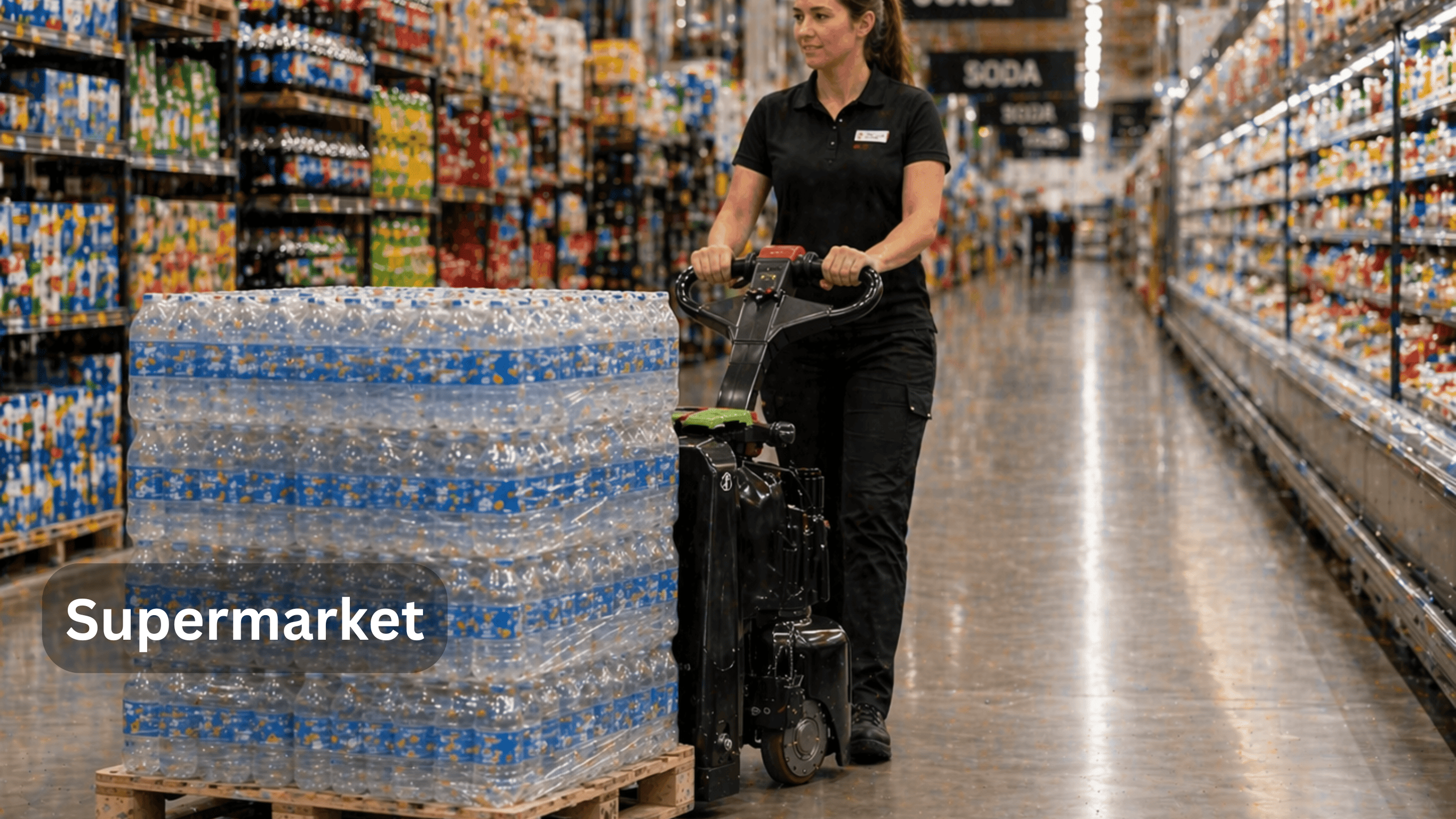

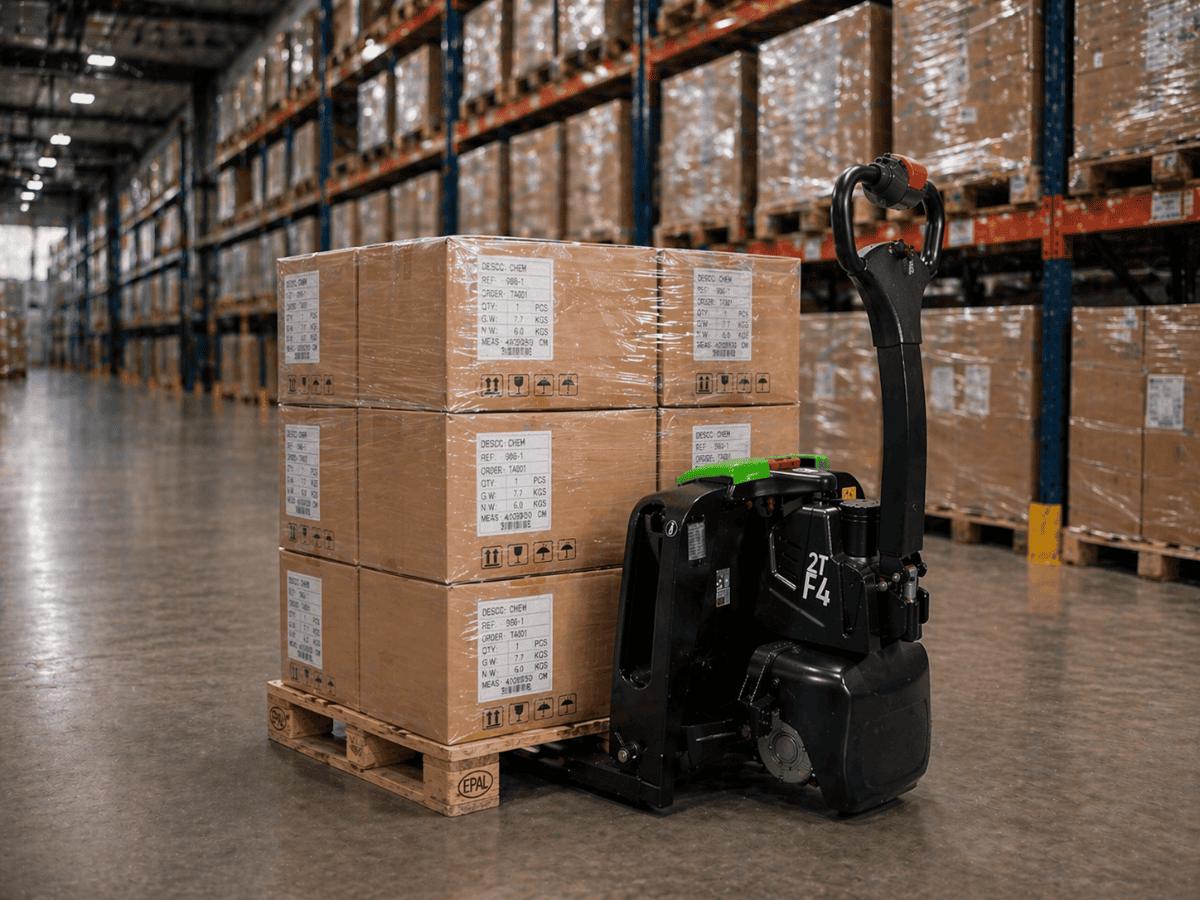

The Raelon F4-201 is a compact 4,400 lb lithium electric pallet jack designed for heavier daily pallet movement in warehouses, receiving areas, distribution operations, retail facilities, and commercial storage spaces.
With a higher rated capacity, powered travel and lift controls, and a 48V dual-battery system, the F4-201 is a practical choice for businesses that regularly handle heavier pallet loads but still need compact manoeuvrability in aisles, stockrooms, and loading areas.
It is also a practical upgrade for operations moving beyond manual pallet trucks or lighter-capacity electric pallet jacks, helping reduce the physical effort required for routine pallet transfer, staging, replenishment, and receiving work.

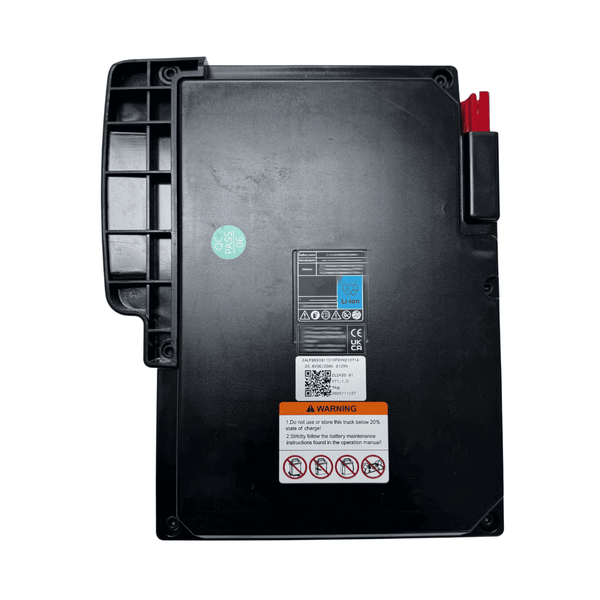

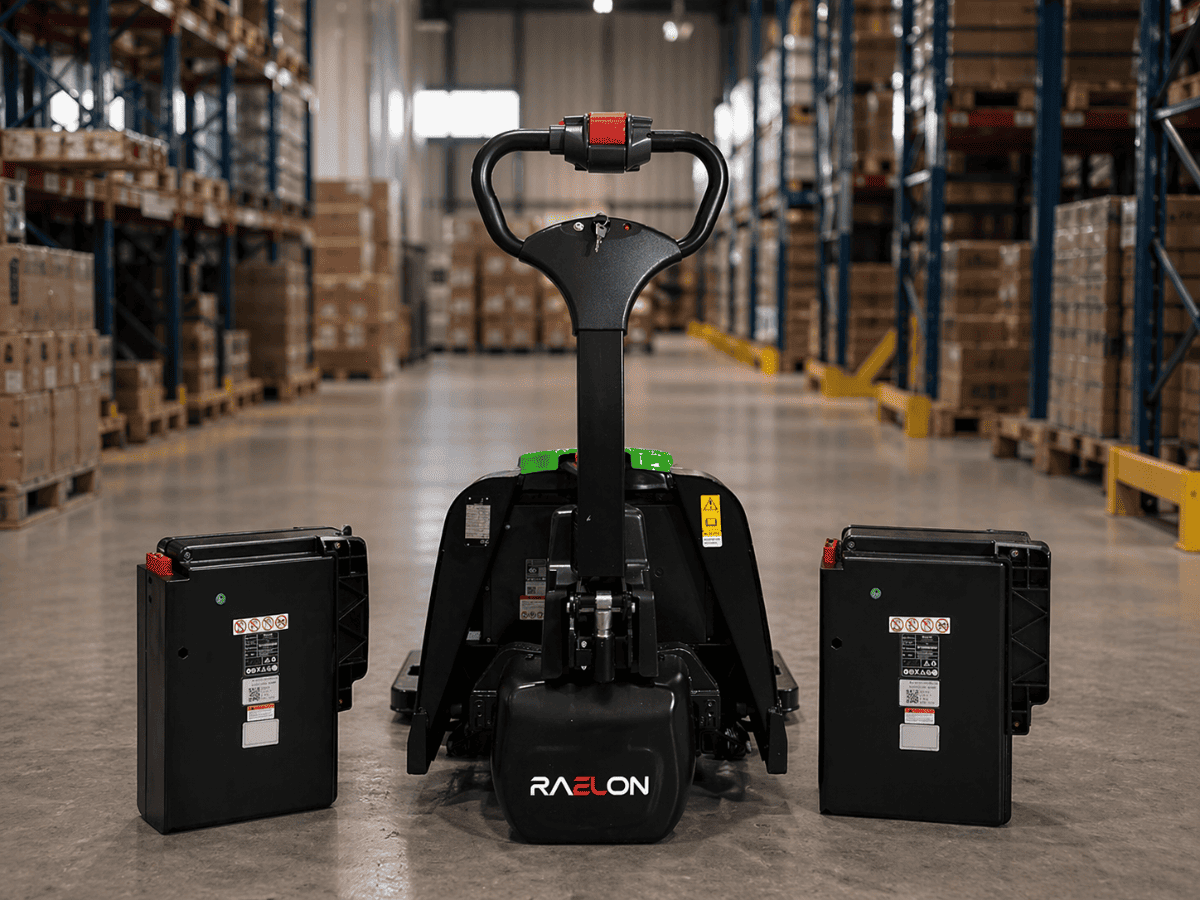

The standard Raelon F4-201 configuration includes two removable 24V / 20Ah lithium-ion batteries, which together form the machine’s 48V power system. Two compatible chargers are included, allowing both batteries to be charged at the same time.
Actual runtime may vary based on load weight, travel distance, floor conditions, temperature, and operating frequency.

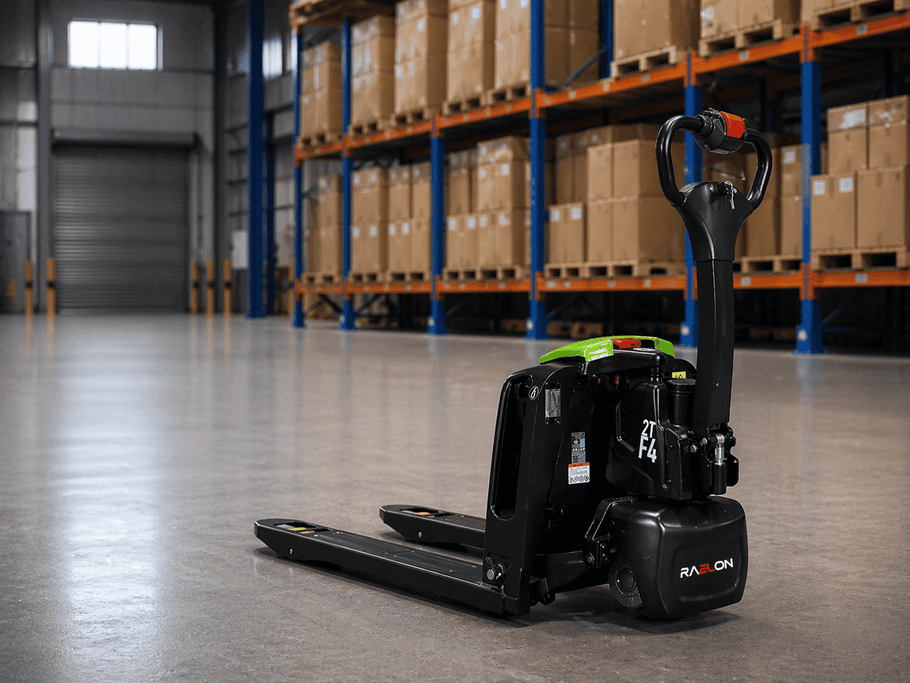

The F4-201 combines a 4,400 lb rated capacity with a compact walkie-style design. Its 54 in turning radius helps operators manoeuvre through warehouse aisles, receiving areas, stockrooms, pallet-staging zones, and other indoor spaces where larger equipment may be less practical.
Stabilizing wheels are not included with every configuration. Review the selected product variant before ordering.
| Load Capacity | Battery Type | Battery Configuration | Service Weight | Drive Motor | Wheel Diameter |
|---|---|---|---|---|---|
| 4,400 lb | Lithium-ion | 2 × 24V / 20Ah | Approx. 310 lb | 0.9 kW DC | 8.3 in / 3.15 in |
Standard configuration includes two lithium-ion batteries and two chargers.
U.S. shipping availability is to be confirmed is available. Local pickup availability depends on current inventory and the pickup locations displayed on the product page.
The truck and lithium batteries include a one-year limited warranty beginning on the delivery date, subject to the applicable warranty terms. Replacement batteries, chargers, and selected F4-201 parts are also available through Raelon.
Still comparing models? View all Raelon electric pallet jacks to compare 3,300 lb and 4,400 lb options.
F4-201 U.S. shipping availability, methods and costs are confirmed by destination and shown at checkout when available. Contact Raelon for freight assistance or fulfillment updates.
Local pickup depends on current product pickup-location data and warehouse availability.
The truck and lithium batteries include a one-year limited warranty beginning on the delivery date, subject to applicable warranty terms.
Compatible replacement batteries, chargers, wheels, and technical support may be available depending on model compatibility and inventory.

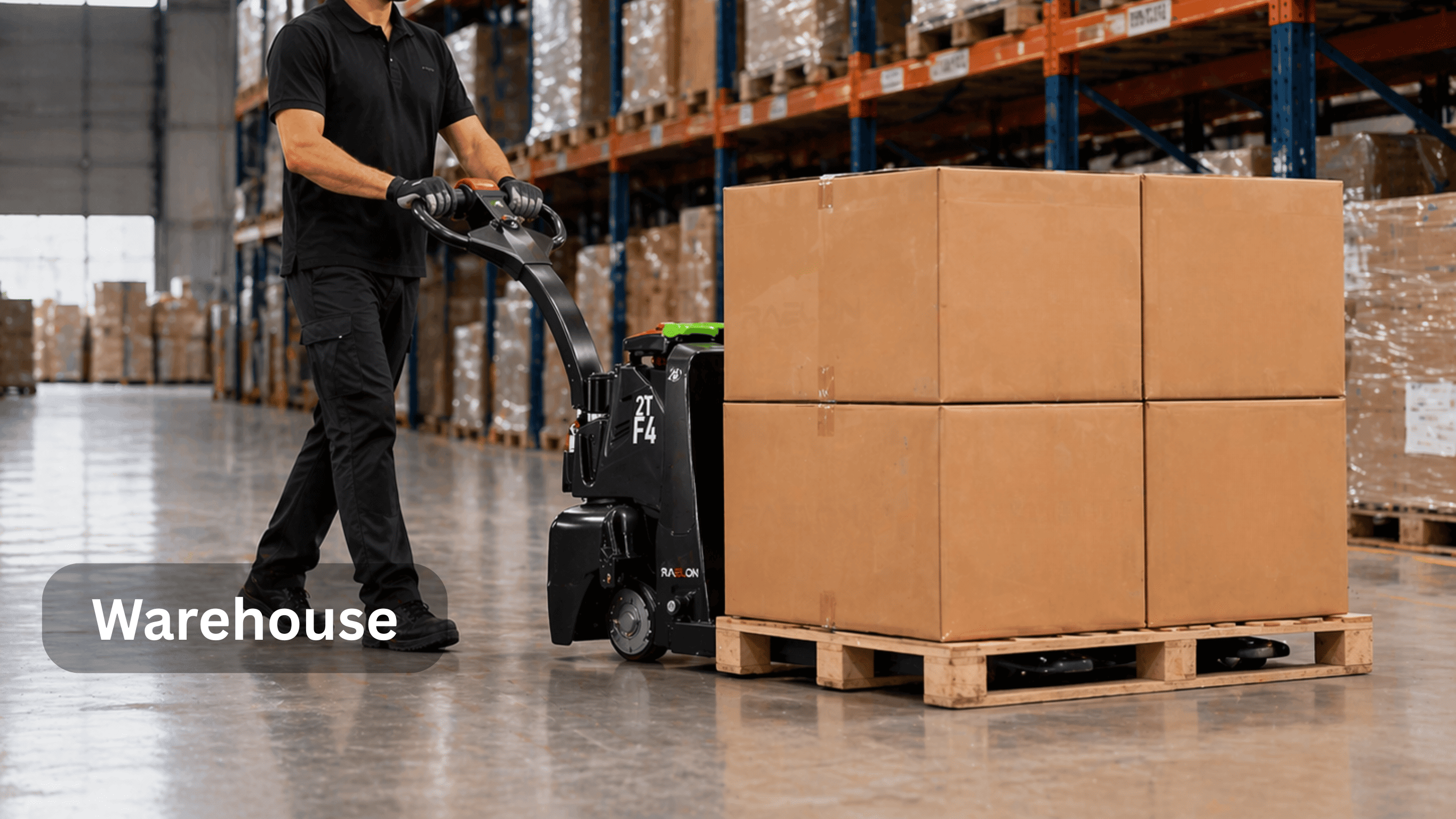

The F4-201 is designed for heavier daily pallet movement in warehouses, receiving and shipping areas, distribution spaces, and other indoor operations that need up to 4,400 lb capacity without moving to a large ride-on truck.
The Raelon F4-201 has a maximum rated load capacity of 4,400 lb. Operators should also consider load distribution, pallet condition, floor conditions, and the working environment.
The F4 is a 3,300 lb model for standard daily pallet movement. The F4-201 provides 4,400 lb capacity, a 48V dual-battery system, and a stronger fit for heavier loads and more frequent handling.

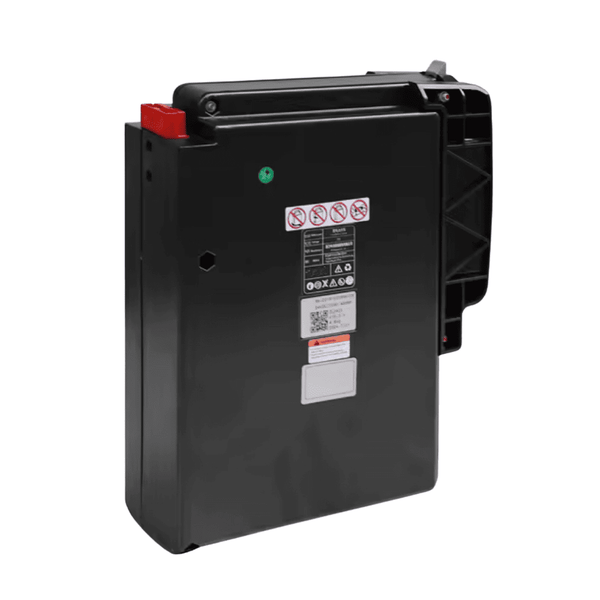

The machine uses two removable 24V / 20Ah lithium-ion batteries together to form its 48V power system.
The standard F4-201 includes two 24V / 20Ah batteries and two chargers. The extra-battery variant includes one additional battery.
Both batteries should preferably be charged at the same time. Using both included chargers, the two standard batteries charge fully in approximately two hours.
The standard two-battery configuration can operate for up to approximately four hours depending on load weight, travel distance, floor conditions, temperature, and usage.
Stabilizing wheels are optional and are included only when the corresponding product variant is selected.
Local pickup depends on the product’s current pickup-location data, inventory, and warehouse availability. Check the pickup information shown on this page or contact Raelon before travelling.
The F4-201 is Coming Soon and is not currently available for U.S. purchase. Contact Raelon for updates on U.S. pricing and fulfillment.
The truck and lithium batteries include a one-year limited warranty beginning on the delivery date, subject to applicable warranty terms.
Compatible replacement batteries and selected parts may be available. Confirm the model, production year, connector, and part compatibility before ordering.

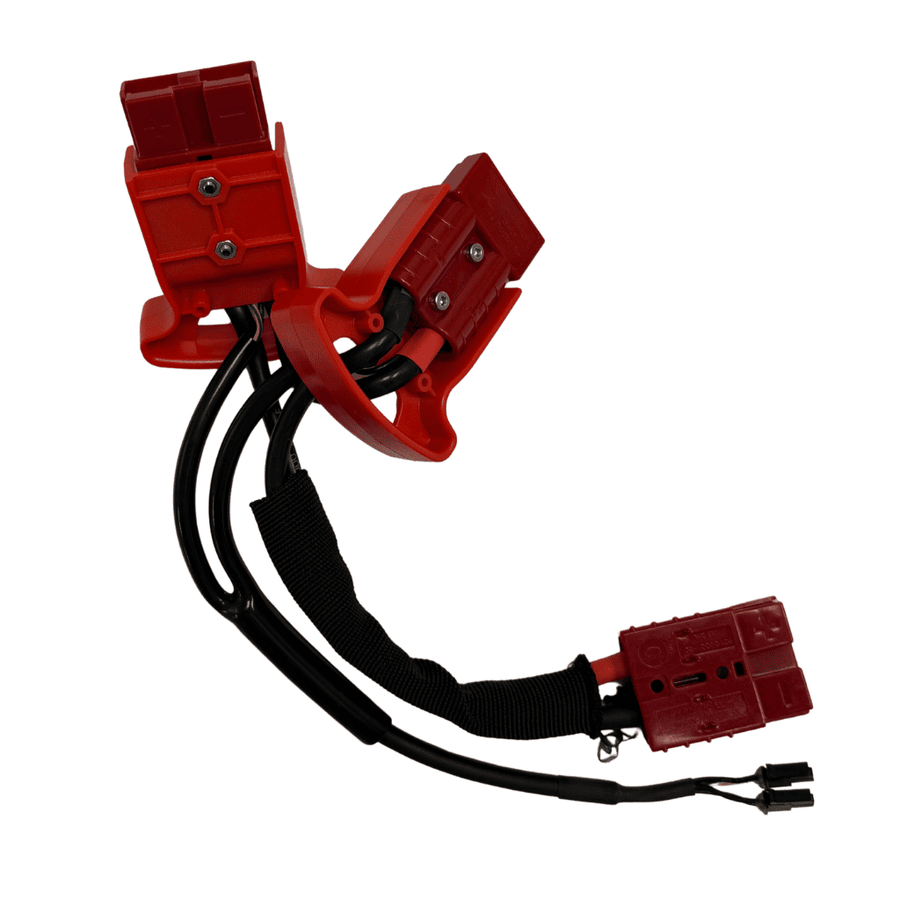

F4-201 PARTS
