ELECTRIC STACKERS IN THE U.S.
Electric Pallet Stackers — Coming Soon in the U.S.
Explore electric pallet stackers for powered pallet movement, lifting and low-level stacking in U.S. warehouses, stockrooms and distribution facilities. U.S. inventory, pricing and fulfillment are being finalized.
CTD15R Availability to Be Confirmed
The CTD15R electric pallet stacker is Coming Soon in the U.S. Product availability and any approved U.S. pricing will update after inventory and fulfillment are confirmed.
Shop Electric Pallet Stackers
Browse current Raelon electric stackers for pallet lifting, warehouse stacking and short-distance material movement. Product availability, lift height, battery configuration and pricing are shown on each product page.
Sold Out
CURRENT RAELON MODEL

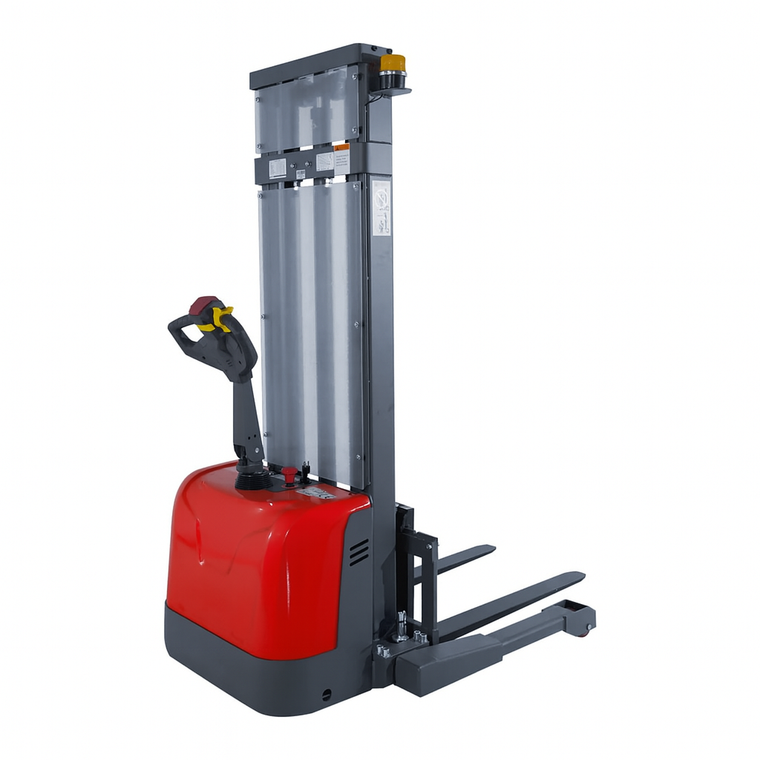

CTD15R Full-Electric Walkie Straddle Stacker
The CTD15R is a pedestrian-operated electric pallet stacker designed for pallet positioning, low-level stacking and short-distance transport. U.S. availability and final fulfillment details will be confirmed by model.
View CTD15R Details
3,300 lb
Rated Capacity
138 in
Maximum Lift Height
Lithium-Ion
Battery Type
Walk-Behind
Operator Type
What Is an Electric Pallet Stacker?
An electric pallet stacker is a compact material handling machine that combines powered pallet travel with powered vertical lifting. Unlike an electric pallet jack, which primarily moves pallets at floor level, an electric stacker can also raise loads for low-level stacking, work positioning or placement on suitable racking. Walk-behind electric stackers are commonly used where a full-size forklift is unnecessary or space is limited.
Electric pallet stackers are designed for businesses that need both horizontal pallet movement and controlled vertical lifting in a compact footprint.
How to Choose an Electric Pallet Stacker
Rated Capacity
Choose a stacker with enough rated capacity for the heaviest expected pallet, while accounting for load centre and lift height.
Maximum Lift Height
Confirm the required stacking or rack height as well as the mast height when lowered and fully extended.
Pallet and Fork Compatibility
Check pallet entry, fork dimensions, adjustable fork range and whether the application requires straddle legs or a fork-over design.
Aisle and Turning Space
Compare overall width, turning radius and aisle requirements with the actual warehouse layout.
Battery and Workload
Consider battery type, expected daily usage, charging access and how often the equipment will travel and lift.
Common Electric Pallet Stacker Types
Electric pallet stackers are available in several configurations. Product availability varies, and not every type listed below is currently stocked by Raelon.
Full-Electric Walkie Stackers
Powered travel and powered lifting controlled by a pedestrian operator walking behind the equipment.
Straddle Stackers
Use support legs positioned outside the pallet area and can work with pallet types that suit the adjustable straddle configuration.
Fork-Over Stackers
Designed for compatible open-bottom pallets where the support legs can travel beneath the pallet.
Counterbalanced Stackers
Use a counterweight rather than front straddle legs, which can provide different pallet access but generally requires a different equipment footprint.
Electric Stacker vs. Pallet Jack vs. Forklift
Electric Pallet Jack
- Primary function
- Move pallets at floor level
- Best suited for
- Receiving, shipping and short-distance pallet transport
- Vertical lifting
- Limited to pallet entry and travel clearance
Electric Pallet Stacker
- Primary function
- Move and vertically stack pallets
- Best suited for
- Low-level stacking, work positioning and compact warehouse operations
- Vertical lifting
- Designed for controlled pallet lifting and stacking
Forklift
- Primary function
- Move, lift and stack heavier loads at higher throughput
- Best suited for
- Frequent handling, heavier loads and broader warehouse or yard applications
- Vertical lifting
- Varies significantly by forklift class and mast
Where Electric Pallet Stackers Are Used
Electric stackers can be a practical option for facilities that need more vertical lifting capability than a pallet jack but do not require a full-size forklift for every task.
Warehouses and Stockrooms
Distribution and Receiving Areas
Retail Backrooms
Light Manufacturing
Compact or Narrow Work Areas
Confirm pallet type, rated capacity, floor condition, aisle width and required lift height before selecting equipment for a specific application.
Planning an Electric Stacker for the U.S.
U.S. Shipping
Shipping costs may be estimated during the buying process, but final electric stacker freight is confirmed based on the product, destination, carrier and delivery requirements.
View Shipping InformationCommerce, CA Pickup
Pickup options for Coming Soon stackers will be confirmed after U.S. inventory is available. Do not travel without written confirmation.
View Local Pickup InformationFinancing
Financing options are available for qualified customers.
View Financing OptionsWarranty
Raelon electric stackers include a 90-day equipment warranty. The battery includes a one-year warranty.
Returns
Unopened products may be returned within 30 days, subject to a 15% restocking fee and the applicable return conditions.
Electric Pallet Stacker FAQs
What is an electric pallet stacker?
An electric pallet stacker is a walk-behind material handling machine that uses powered travel and powered lifting to move pallets and raise them for stacking, work positioning or placement at suitable heights.
What is the difference between an electric stacker and an electric pallet jack?
An electric pallet jack is mainly designed to move pallets at floor level. An electric pallet stacker can move pallets and also raise them vertically for low-level stacking or positioning.
How much weight can an electric pallet stacker lift?
Capacity depends on the model, load centre and lift height. Raelon’s current CTD15R model has a rated capacity of 3,300 lb. Always confirm the product specifications for the intended load.
How high can the CTD15R electric walkie stacker lift?
The current CTD15R reference configuration has a maximum lift height of 138 inches; U.S. availability and final specifications will be confirmed by model.
Is the CTD15R a full-electric walkie stacker?
Yes. The CTD15R uses powered travel and powered lifting and is operated by a pedestrian walking behind the equipment. It uses straddle legs and adjustable forks.
How much does an electric pallet stacker cost?
Electric pallet stacker prices vary by rated capacity, lift height, battery type, mast configuration and other equipment features. Current Raelon pricing is displayed in the product listing and on each product page.
Will Raelon ship electric stackers in the U.S.?
Electric stackers are Coming Soon in the U.S. Shipping and fulfillment details will be confirmed when inventory is available.
Can I pick up an electric stacker in Commerce, CA?
Pickup availability for electric stackers will be confirmed after U.S. inventory is available. Customers must receive pickup confirmation before travelling.
Does Raelon offer financing and warranty coverage?
Financing options are available for qualified customers. Raelon electric stackers include a 90-day equipment warranty, and the battery includes a one-year warranty.
Need Help Choosing an Electric Pallet Stacker?
Contact Raelon for help comparing pallet compatibility, rated capacity, lift height, warehouse space, shipping and availability.
