Pallet jacks are the quiet workhorses of a warehouse. They do thousands of small moves that nobody notices until something breaks. A squeaky turn, a slow lift, a wheel that flat spots, or a handle that feels loose can turn a simple pallet move into wasted time and a safety risk.
This guide explains the most common pallet jack parts that wear out, what each part does, what symptoms to watch for, and how daily checks help you catch problems early. It covers both manual pallet jacks and powered equipment like an electric pallet jack, electric pallet mover, and powered pallet jack. If you want to keep common wear items ready to ship, you can browse our parts collection.
Table of Contents
- 1. What “pallet jack parts” includes
- 2. Manual pallet jack vs electric pallet jack parts
- 3. The pallet jack parts that wear out most often
- 4. Daily inspection checklist that prevents most breakdowns
- 5. How to choose the right replacement pallet jack parts
- 6. When to repair vs replace the whole pallet jack
- 7. Common questions about pallet jack parts
1. What “pallet jack parts” includes
When people search pallet jack parts, they usually need one of these categories:
- Wear parts that touch the floor, like wheels and bearings
- Hydraulic parts that make the forks lift and lower
- Control parts on the handle, like release valves and linkages
- Structural parts, like forks and frame hardware
- Powered parts on electric pallet jacks, like batteries, connectors, and switches
If you keep a small inventory of the most common parts, you can turn a breakdown into a quick fix instead of a multi-day delay.
Raelon PU Pallet Truck Roller Set (6204)
Durable polyurethane wheels featuring high-quality 6204 bearings for smooth, non-marking travel.
CAD $38 CAD $45
View Product2. Manual pallet jack vs electric pallet jack parts
A manual pallet jack is mechanically simple. The most common parts to replace are wheels, bearings, and hydraulic seals. An electric pallet jack adds electrical and drive components, so you also need to think about the battery, charger connection, throttle and controls, and drive wheel assemblies.
That difference matters because when a powered pallet jack fails, it can fail in ways that affect speed control and braking, not just rolling resistance. If your operation relies on powered movement daily, it helps to pair your equipment plan with a basic parts plan.
3. The pallet jack parts that wear out most often
1) Pallet jack wheels and bearings
If your pallet jack is harder to push, starts pulling to one side, chatters over seams, or leaves marks, the first place to look is the wheels.
- Steer wheels are near the handle and do the turning.
- Load wheels sit under the forks and carry the pallet load.
Quick Tip: Wheel Symptoms
Typical symptoms you need replacement wheels: Flat spots or chunking, grinding noise while rolling, wobble during turns, or uneven pulling. If you want a detailed breakdown, see our pallet jack wheels guide.
2) Hydraulic pump assembly
Manual pallet jacks lift using a hydraulic pump. When the pump starts to fail, you will notice the jack will not lift to full height, forks drift down under load, or hydraulic fluid leaks. Common parts include seals, O-rings, and the pump piston.
3) Lowering and release linkage
If the jack will not lower smoothly, or it drops too fast, the issue may be the release valve or handle linkage. This is a safety issue as much as a convenience issue, especially when moving fragile loads.
Raelon F4 (3300lbs)
Reliable daily performance with a dual-battery option for zero downtime.
View Product
Raelon F4 201 (4400lbs)
Stronger 48V system built for heavier loads and busy distribution lanes.
View Product
Raelon CBD15W-II (3300lbs)
Compact lithium option for tight aisles and efficient delivery truck use.
View Product4) Forks, frame, and hardware
Structural parts fail less often, but when they do, take the jack out of service. Look for bent fork tips, cracks, or loose axle hardware. If the frame is compromised, replacing wheels will not solve the underlying risk.
5) Handle, throttle, and safety controls on electric pallet jacks
On an electric pallet jack, the handle assembly includes controls that affect movement and braking. Common parts include throttle switches, emergency belly switches, and horn switches. Control issues can create unpredictable behavior around pedestrians.
6) Battery, connector, and charging parts

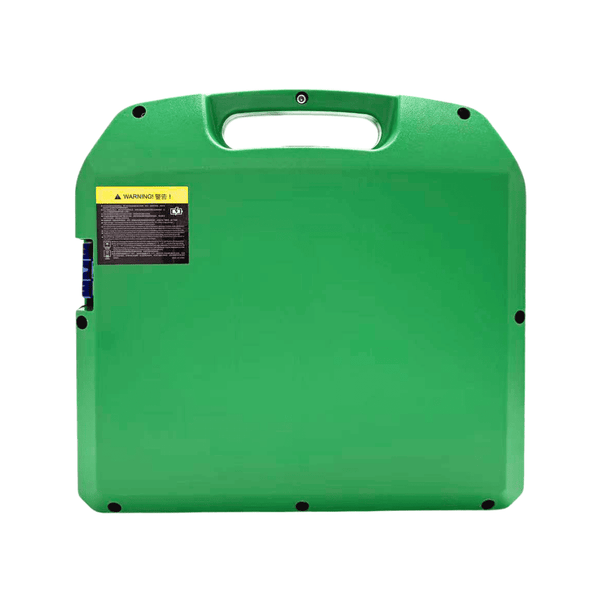

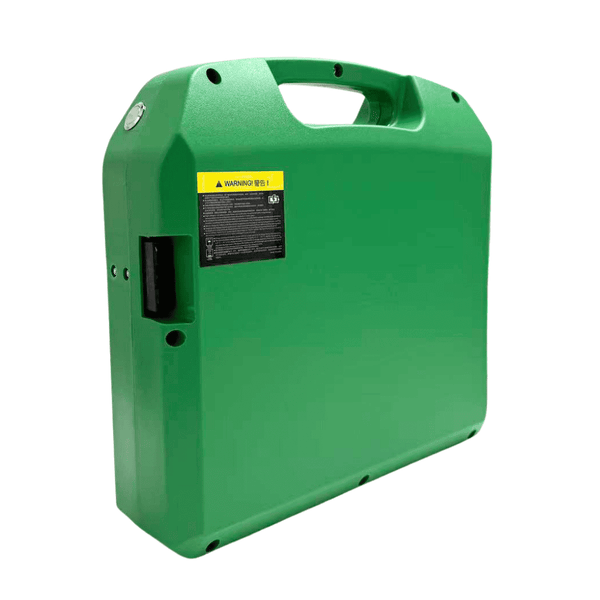

The battery system is one of the highest-value parts. If your operation depends on swap-friendly batteries, keeping a spare can reduce downtime. For example, for F4 pallet jack fleets, see the Lithium Battery 24V20Ah for F4 Pallet Jack with BMS.
7) Drive wheel and motor-related parts
Powered pallet jacks have a drive wheel that handles traction and travel. The drive wheel often wears differently than load wheels because it is driven and experiences more torque stress.
Buying Tip
Regularly replacing wear parts can extend the life of your equipment. When the cost of repair nears the cost of a new unit, consider browsing our Electric Pallet Jack Collection for a high-efficiency replacement.
4. Daily inspection checklist that prevents most breakdowns
The simplest way to reduce parts failures is to catch problems early. A practical routine looks like this:
- Look over forks and frame for damage
- Check wheels for cracks, flat spots, and debris
- Confirm handle and controls work smoothly
- Test lift and lower functions
- Check for leaks and unusual noises
- For electric pallet jacks, confirm battery level and connector condition
5. How to choose the right replacement pallet jack parts
Buying the wrong part wastes time. Confirm the exact model and load rating using the nameplate. Measure diameter and width before you order wheels—even a few millimeters can cause fit issues. Choose wheel material (Polyurethane vs. Nylon) based on your floor and workload, and always replace in pairs to keep tracking straight.
6. When to repair vs replace the whole pallet jack
Sometimes it is smarter to replace the unit, especially if the frame is bent or cracked, or the powered unit has expensive electrical failures. If you are shopping a pallet jack for sale, think about lifetime cost, not just purchase price.
7. Common questions about pallet jack parts
Are pallet jack parts universal? Some parts like generic wheels are interchangeable, but many (especially hydraulic and electric) are model-specific.
How often should you replace pallet jack wheels? Inspect routinely and replace when you see wear that affects rolling or causes floor damage.
Do powered pallet jacks require special maintenance? Yes. Battery care and drive wheel condition should be part of a regular routine.
Keeping parts in stock without overbuying
Start with the items that fail most: steer wheel sets, load wheel sets, common bearings, and basic hydraulic seal kits. A small inventory is usually enough to prevent the most common downtime events. For a centralized place to source common items, browse Raelon parts.
