Raelon CBD20KD-19 4400lbs Lithium-ion Electric Pallet Jack

Industrial grade heavy-duty construction for Raelon electric warehouse machinery Best For Small to Mid Size Warehouses
Ship across Canada and the U.S.
Raelon 90-day to 1-year brand warranty for electric material handling equipment 90-Day Warranty
Customer Ratings:
4.5 (48 reviews)
Sale price $4,600.00
Sold out
Use code DISCOUNT200 at checkout and save extra $200 CAD / $145 USD.

Color: Red

Power source: Electric

Out of stock

Estimate Shipping

Enter your Canadian postal code or U.S. ZIP code to get an estimated shipping cost for this product.

Shipping is an estimate only. Final shipping will be shown at checkout or confirmed by quote.
Raelon CBD20KD-19 4400lbs Lithium-ion Electric Pallet Jack
Raelon CBD20KD-19 4400lbs Lithium-ion Electric Pallet Jack
$4,600.00

Key Features of 4400lbs Electric Pallet Jack


The 4400lbs Electric Pallet Jack is engineered for demanding material handling tasks in warehouses, logistics hubs, and industrial environments. This heavy-duty electric pallet jack combines a rugged steel frame, advanced AC drive system, and reinforced forks to deliver power, durability, and precision. Whether you’re operating in tight aisles or open warehouse bays, this pallet jack provides the maneuverability and reliability you need.

Built for professionals who expect more from their pallet trucks, this model minimizes maintenance with brushless components, while maximizing uptime with smart energy-saving features. It’s the ideal solution for high-volume electric pallet jack operations that require consistent performance.


Key Features & Benefits

  • Heavy-Duty Construction – Reinforced steel forks and a robust frame make this electric pallet jack ideal for tough, industrial-grade loads.
  • Compact & Maneuverable – 63.7" turning radius enables smooth handling in narrow warehouse aisles and tight loading zones.
  • Advanced AC Drive System – Brushless motor eliminates common wear points, reducing maintenance needs in your pallet trucks.

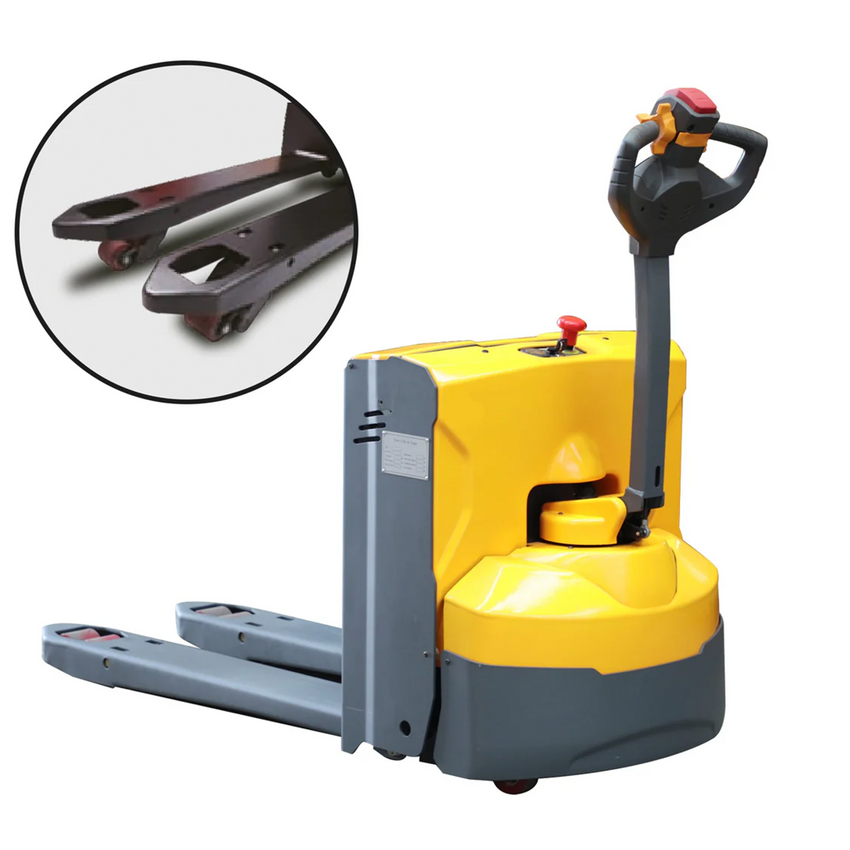

  • Optimized Fork Design – 27" wide x 48" long forks with 2.9" thickness offer strong support for standard pallets and high-capacity handling.
  • Overload Protection – Built-in pressure relief valve enhances safety and extends equipment life.

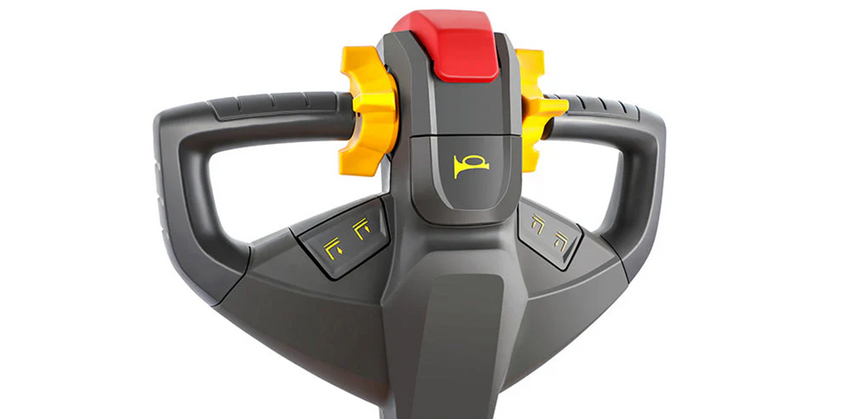

  • Ergonomic Handle Design – Easy-to-use lifting, lowering, and steering controls reduce operator fatigue and improve workflow.

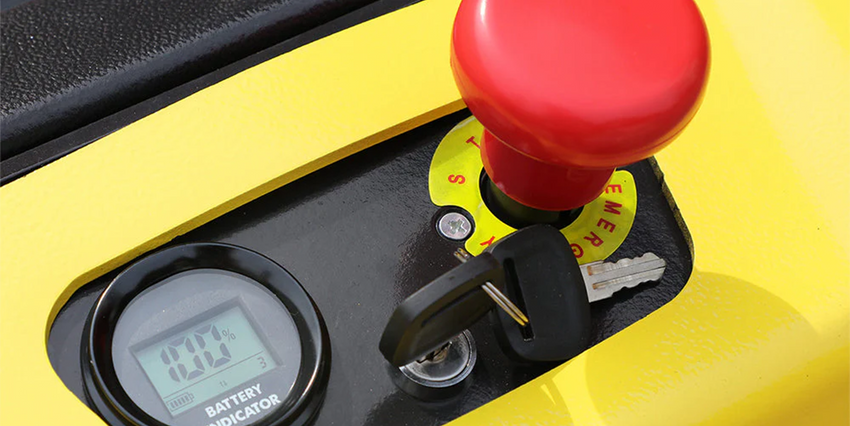

  • Optimized Battery System – Low battery protection helps extend battery life and maintain consistent electric pallet jack performance.
  • Serviceable Components – Grease fittings and replaceable bushings make this pallet truck easier to maintain over time.


Who Is This Pallet Jack For?

  • Warehouses & Distribution Centers – A reliable solution for intensive pallet truck use and large-scale logistics tasks.
  • Freight & Cargo Operators – Ideal for transporting heavy pallets with stability and ease.
  • Retail & Supermarkets – Supports frequent stock movement and backroom organization.
  • Manufacturing & Industrial Plants – A rugged, low-maintenance electric pallet jack for daily heavy-duty use.


Why Choose This Pallet Jack?

  • Lifts up to 4,400 lbs with reinforced fork construction built for long-term use.
  • Requires only 95.2" aisle width for tight-space maneuverability in busy pallet jack environments.
  • AC drive system reduces wear and boosts lifespan—ideal for fleet-scale electric pallet jacks operations.
  • Lifting height up to 7.9" increases stacking and transport flexibility.
  • Designed to outperform traditional pallet trucks with superior battery life, control, and structural integrity.



Technical Specifications

Specification Details
Load Capacity 4,400 lbs
Turning Radius 63.7"
Aisle Width 95.2"
Overall Dimensions 70" L x 28" W x 49.5" H
Fork Width 27" (Overall)
Single Fork Width 6.7"
Fork Length 48"
Fork Thickness 2.9"
Fork Lowered Height 3.2"
Lifting Distance 4.7"
Lifting Height 7.9"


Battery & Charging

Specification Details
Battery Voltage & Capacity 24V / 105Ah
Charger Type 24V / 10A Charger
Charging Time Approx. 4-6 Hours


Speed & Performance

Specification Details
Travel Speed (Unladen) 2.8 mph
Travel Speed (Laden) 2.67 mph



Still comparing models? View all Raelon electric pallet jacks to compare 3300 lb and 4400 lb options.



Always Buy Toghther

Charger-CBD15-24V6A Charger-CBD15-24V6A
Sold out

Raelon

Charger-CBD15-24V6A

4.8 (4)

$54.00

Lithium Battery 24V20Ah for CBD15W-II Li Lithium Battery 24V20Ah for CBD15W-II Li
Sold out

Raelon

Lithium Battery 24V20Ah for CBD15W-II Li

Li-ion
4.5 (12)

$539.00

Lithium Battery 24V20Ah for F4 and F4-201 Pallet Jack (2025) Lithium Battery 24V20Ah for F4 and F4-201 Pallet Jack (2025)
Sold out

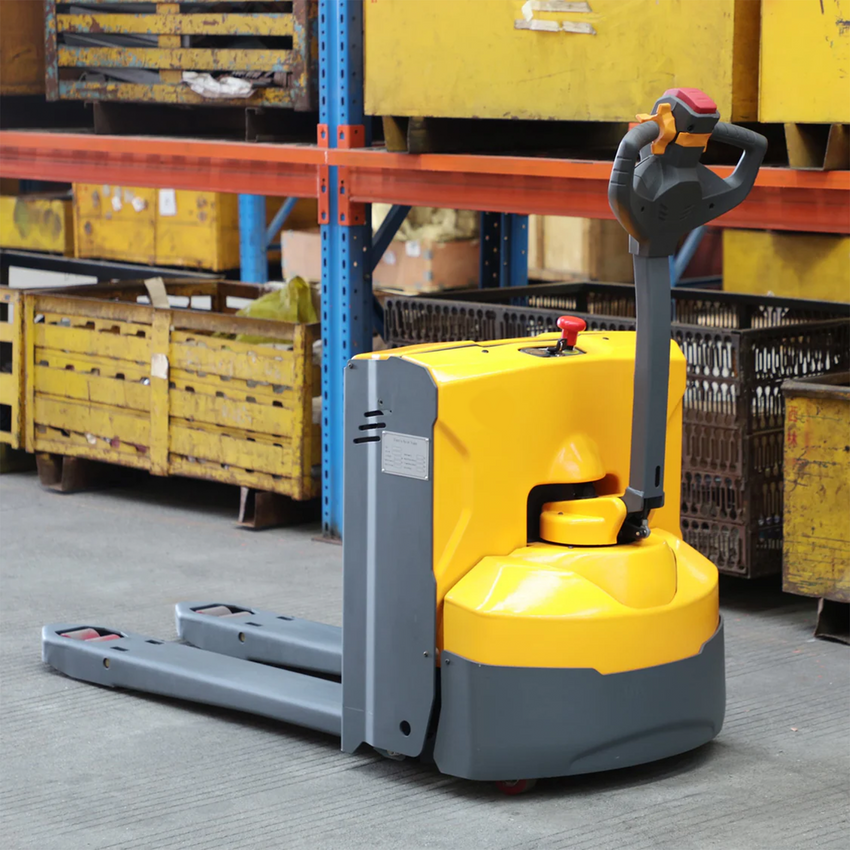

Raelon electric pallet jack in a warehouse aisle for modern warehousing, pallet movement, and daily material handling

Why an Electric Pallet Jack is Essential for Modern Warehousing

Built for Productivity - Electric Pallet Jacks Make a Difference

Electric pallet jacks—also known as powered pallet trucks, electric pallet movers, or pallet lifters—have become a must-have in modern logistics and warehouse operations. Unlike manual pallet trucks, these electric power jacks reduce strain on operators, improve efficiency, and are ideal for both tight indoor aisles and high-volume loading zones. Whether you’re handling lightweight items or heavy-duty materials, investing in an electric pallet jack ensures smoother, safer, and more productive shifts.

Why Choose Raelon: Built for North American Warehouses

Engineered for Performance, Trusted Across Canada and US

At Raelon, we build high-performance electric pallet jacks and pallet trucks designed for the real demands of North American warehouses — from fast-paced logistics hubs to cold storage and manufacturing facilities.

Our lineup includes everything from compact jacks for tight aisles to heavy-duty models built for high-capacity lifting. With features like dual lithium-ion batteries, reinforced wheels, and sealed battery housings, our equipment is ready for both light-duty use and industrial applications.

Each unit is built with the operator in mind — combining responsive controls, quick charging, and minimal maintenance. Looking for an electric pallet lifter that’s powerful, flexible, and reliable? Raelon delivers.

We proudly serve businesses across the U.S. and Canada, with fast shipping and dependable support to keep your equipment running smoothly — wherever you're located.

Whether you're adding your first electric jack or upgrading a full fleet, trust Raelon for quality, performance, and long-term value.

FAQs of Raelon Electric Pallet Jacks

Find answers to common questions about electric pallet jacks, pallet trucks, and power lifters—everything you need to know before buying the right equipment for your warehouse.

Shipping costs for electric pallet jacks and stackers vary by location and are calculated at checkout based on the product, destination, and shipping method. Standard rates generally range from $150 to $850 depending on your province. If the shipping charge shown at checkout appears incorrect or unavailable, please contact us and we can help arrange a manual order. Check our Shipping Policy for more details.

Need Help Choosing the Right Electric Pallet Jack?

If you are comparing electric pallet jacks for sale and are not sure which is the right fit, contact our team for help with load capacity, battery type, local pickup, and shipping across Canada and the U.S. We can help you compare models and recommend the right option for your warehouse.
